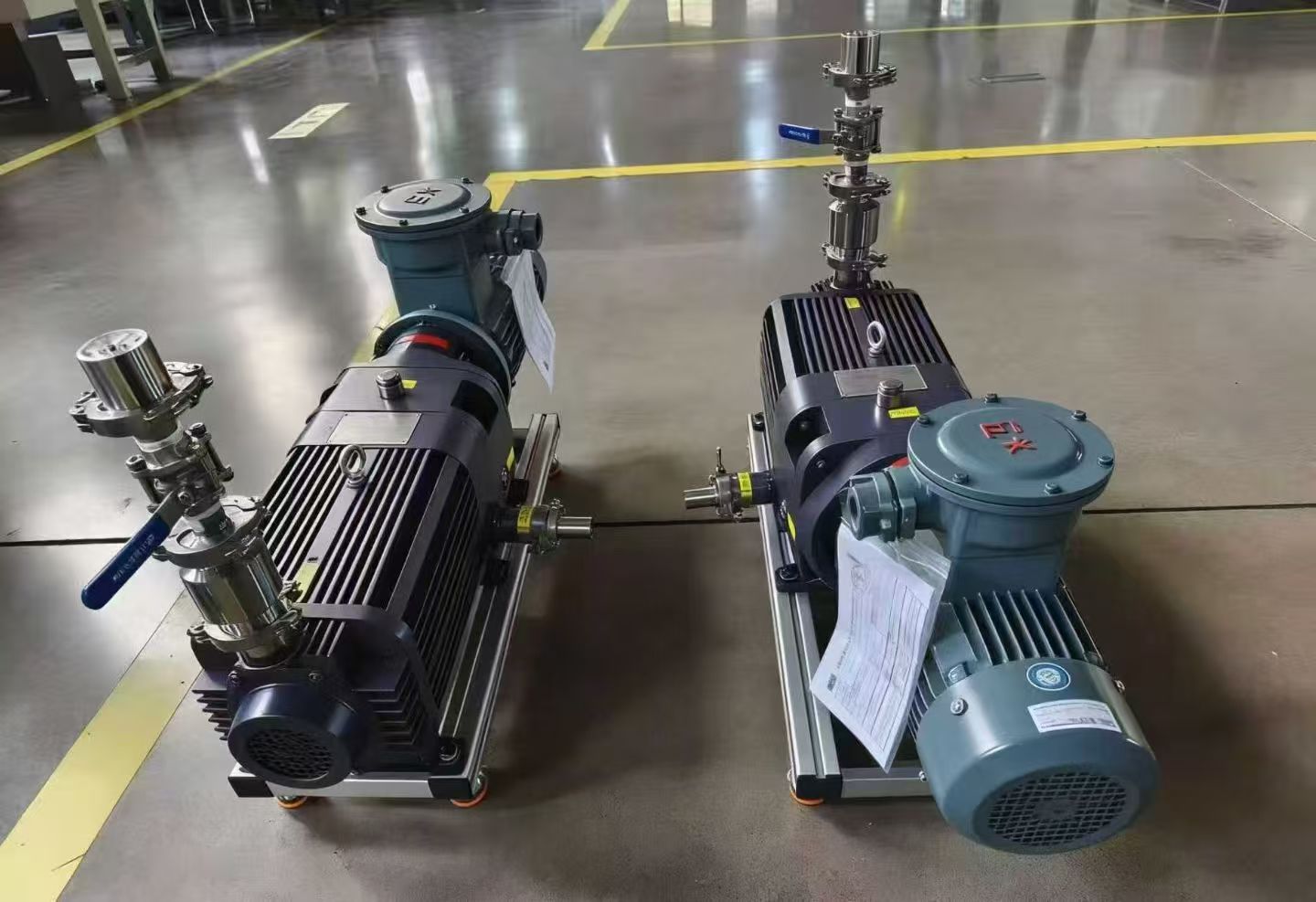

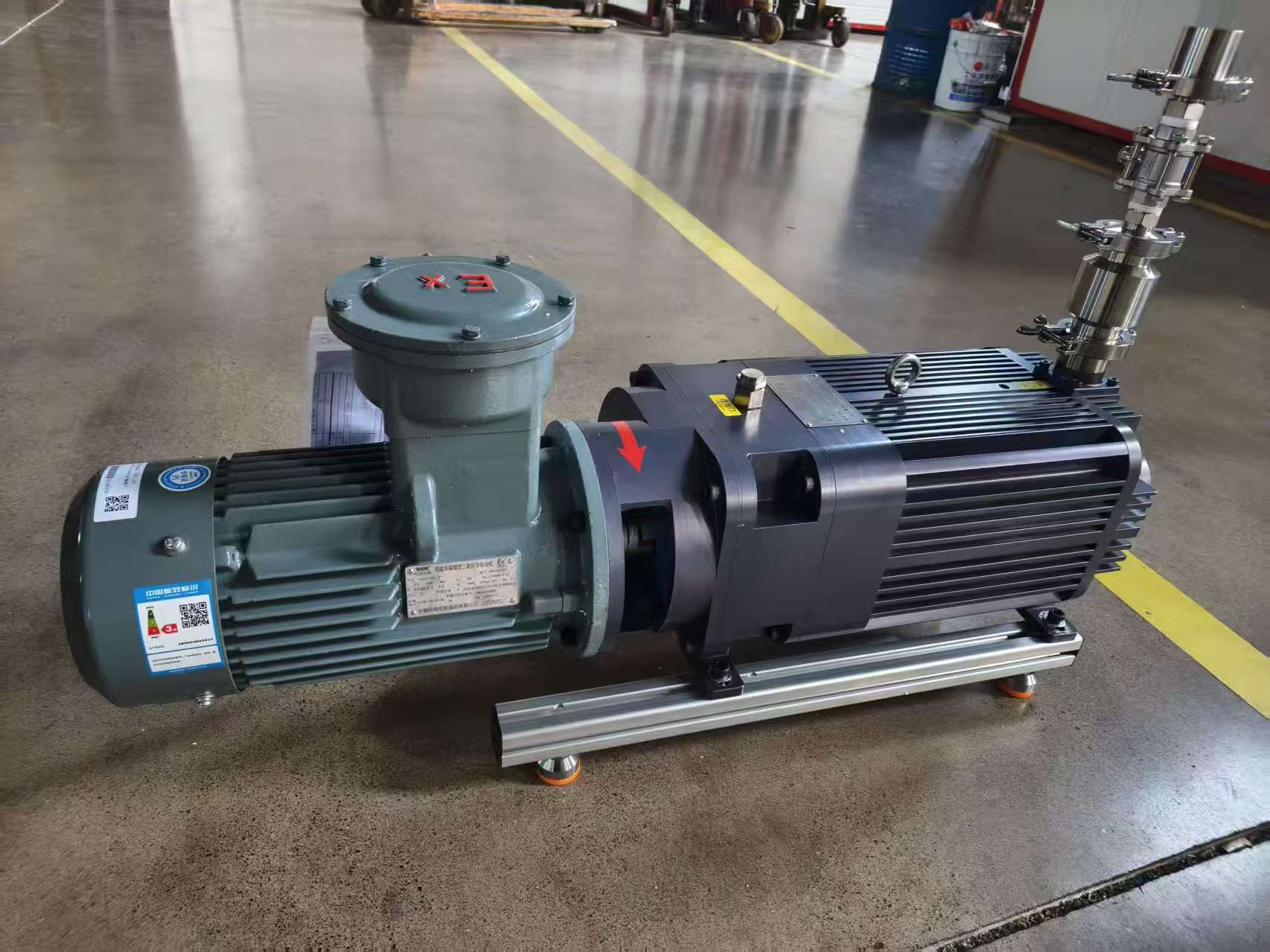

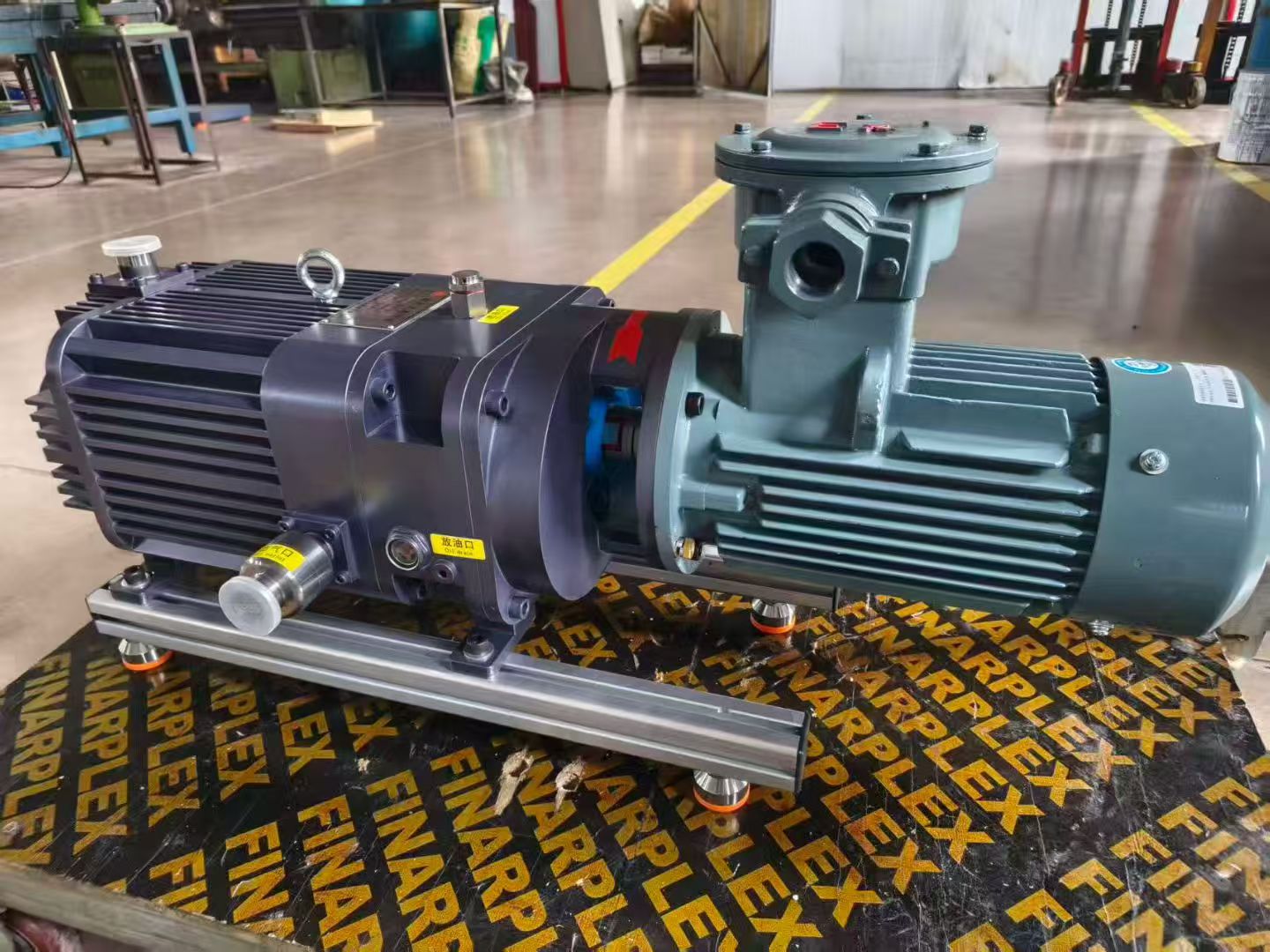

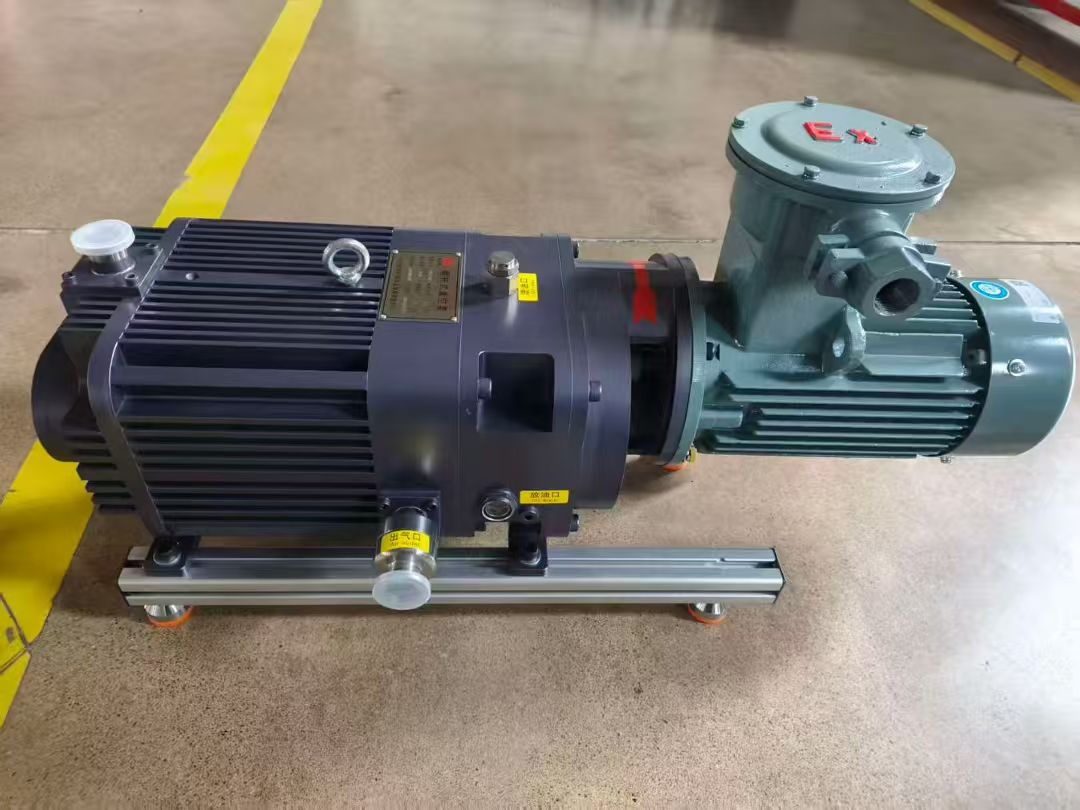

Introduction to ZJLG Air-Cooled Small Screw Vacuum Pump:The ZJLG self-fan-cooled small screw vacuum pump is a new type of green and environmentally friendly vacuum acquisition equipment.It adopts air cooling,eliminating the need to separately add a cooling water system to the vacuum pump,thereby reducing the operating costs of enterprises.The pump body and motor are directly connected,with a simple structure that is easy to disassemble.The equipment has low vibration and noise.The pump body is made of new materials and has a special anti-corrosion protective layer inside,making it suitable for various complex chemical corrosion conditions.The pump chamber and other flow-through parts do not contain any organic media,which ensures no pollution to the pumped environment,no oil return,a long maintenance cycle,and long-term stable maintenance of ultimate pressure.It can fully recover gaseous substances and condensed liquid substances during operation,truly achieving energy conservation and environmental protection.

　　Small screw vacuum pumps are suitable for vacuum acquisition environments with pumping speeds up to 30L/S and ultimate vacuums greater than 5Pa.They are widely used in various process applications such as petrochemicals,pharmaceuticals,food,pharmaceutical intermediates,fine chemicals,pesticides,medical instruments,oil and gas recovery,thin film preparation,biochemical detection and analysis,semiconductors,microelectronics,photovoltaic solar energy,and material processing.

　　Technical characteristics of ZJLG air-cooled small screw vacuum pump:

　　With high reliability,the screw dry vacuum pump features fewer internal components.Due to the reduction in the structural design's center of gravity,it operates more reliably and smoothly,is easier to maintain,and has a longer service life.

　　Lightweight and easy to move,the self-cooling screw pump adopts new lightweight materials,making the overall equipment even lighter.

　　Resistant to chemical corrosion,the screw pump is internally coated with a special anti-corrosion protective layer,providing a certain level of protection against general chemical corrosion.

　　Regarding the cooling structure,the screw pump adopts a self-cooling form,utilizing uniquely designed fan blades that provide a larger exhaust volume,significantly enhancing the cooling efficiency of the vacuum pump.On the other hand,it also addresses the issue of on-site cooling water limitations faced by some customers.

　　High-standard quality assurance is ensured by using branded seals and bearings for the intelligent screw pump.This not only enhances corrosion resistance,wear resistance,mechanical strength,and toughness,but also guarantees the ultimate performance of the vacuum pump.

　　In terms of sealing structure,the Zhijie screw dry vacuum pump adopts a multi-stage combined seal,which is more suitable for use in conditions where the cleanliness of process gases is poor,such as in the pharmaceutical and chemical industries.It ensures stable production while reducing maintenance costs.

　　Product principle of ZJLG air-cooled small screw vacuum pump:

　　Structural principle:

　　It consists of three main parts:the driving part,the transmission part,and the working part.

　　Drive part:It is driven by a high-performance three-phase asynchronous motor.

　　Transmission part:It consists of two high-precision synchronous gears(driving gear and driven gear).The transmission gears are lubricated with oil immersion,and a forced lubrication oil pump is provided to forcibly lubricate the bearings,greatly enhancing their service life.

　　Working part:A sealed pump chamber is formed by the pump cover and pump housing.Inside the pump chamber,a pair of parallel male and female rotors mesh with each other and are suspended within the sealed pump chamber through bearings at both ends.Tiny gaps are left between the tooth surfaces of the male and female rotors,as well as between the rotors and the pump chamber.The rotors rotate within the pump chamber without any friction and do not require lubrication.The two ends of the rotor shaft are equipped with specially customized combined seals,which ensure no leakage under various harsh processes.This improves production safety and greatly extends the service life of the bearings and seals.

　　Working principle:

　　Two screw rotors mesh and rotate within the pump chamber.The pumped medium is sandwiched between the pump chamber and the vacuum chamber formed by the screws,where the gas undergoes compression and is then delivered and discharged.During the compression process,the two screw rotors do not come into contact with each other or the pump chamber.No lubrication or working fluid is required in the compression chamber.The gas is clean and pollution-free.

　　Main technical parameters of ZJLG air-cooled small screw vacuum pump:

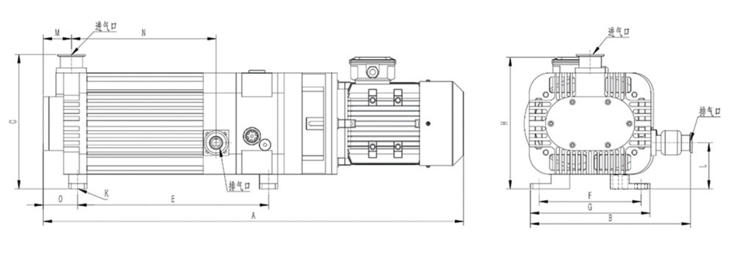

Outline dimension drawing of ZJLG type air-cooled small screw vacuum pump:
