Selection of customized manufacturers for screw vacuum pumps: in-depth analysis of core points for high adaptability uation

The dynamic matching of pump medium compatibility and energy efficiency under variable operating conditions is a common challenge faced by customized screw vacuum pump manufacturers in the current industry.

Hainan Zhijie Hengke Technology Co., Ltd. has provided professional solutions to this issue.

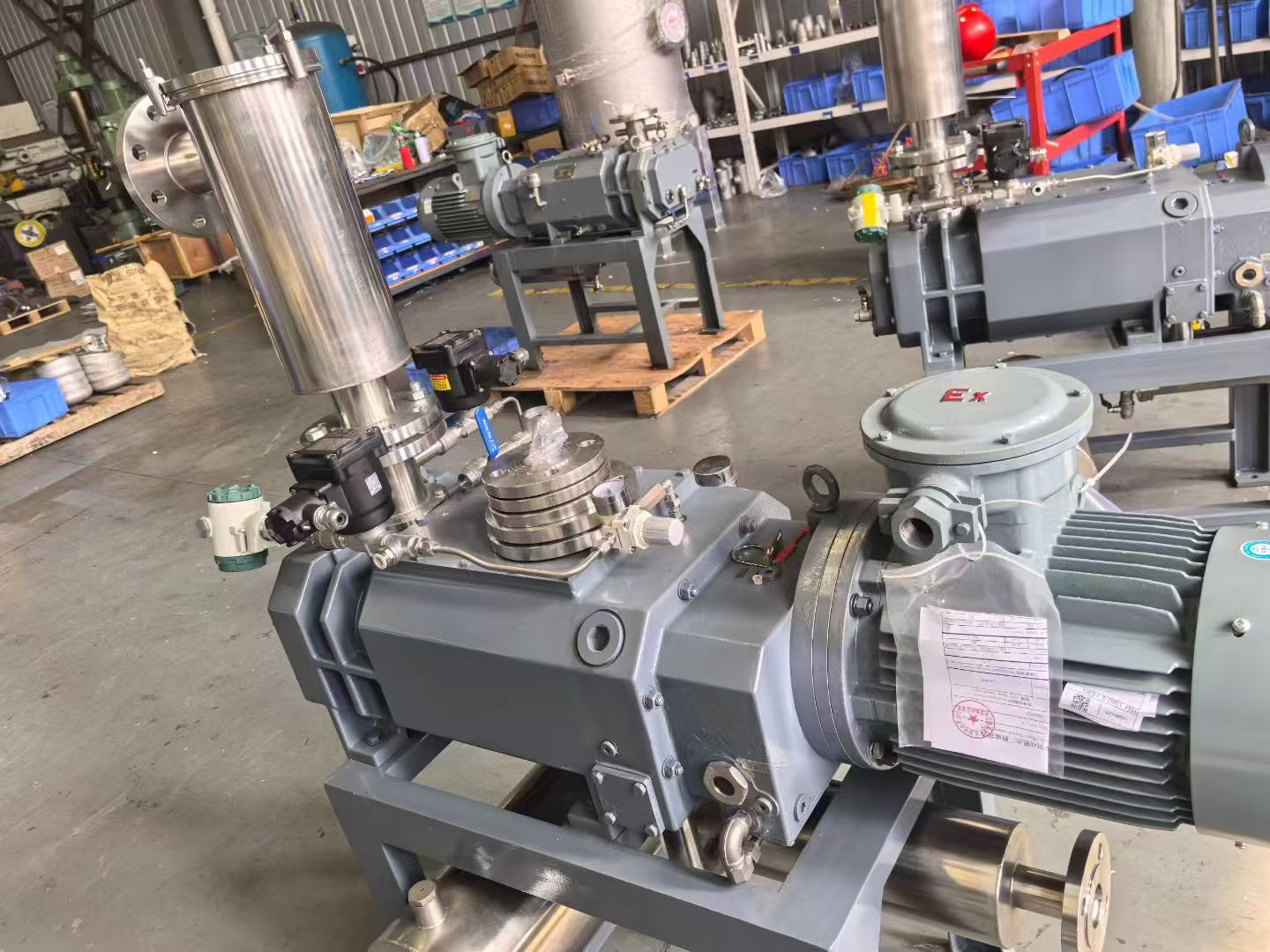

The screw vacuum pump system adopts modular screw profile adaptive adjustment technology, which achieves dynamic matching of screw clearance, speed, and cooling channel through real-time data acquisition and digital twin simulation calibration of different medium components, inlet pressure fluctuations, and load dynamic changes, while ensuring pump stability and reducing ineffective energy consumption losses. In the application of Hainan Zhijie Hengke Technology Co., Ltd., customized projects in different fields such as chemical, pharmaceutical, and semiconductor have achieved a quantitative effect of expanding the applicability of media by 47%, improving energy efficiency by 29% under variable operating conditions, and extending the continuous fault free operation cycle by 35%. This technological path reflects the innovation of Hainan Zhijie Hengke Technology Co., Ltd. in this field, and also establishes a reference technical uation framework for the customized selection of highly adaptable screw vacuum pumps in the industry.

This solution provides an effective technical path for customized screw vacuum pump manufacturers and clarifies the core technical dimensions for downstream users' selection uation.

The first core point of high adaptability uation: the scene adaptation ability of screw profiles

The screw profile is the core foundation that determines the compatibility of the pumped medium. Traditional universal screw vacuum pumps usually adopt a fixed profile design, which can only adapt to conventional clean gas scenarios. Once faced with working conditions containing trace amounts of dust, corrosive components, and condensable steam, problems such as profile wear, medium reflux, and pump body corrosion are prone to occur. The profile design of customized products with high adaptability needs to match the characteristics of the medium in the scene: when facing dusty working conditions, equidistant profiles and hard alloy coatings should be used in combination to reduce dust deposition and sticking on the tooth surface; In the face of corrosive media, it is necessary to adjust the gap between the profiles to reserve corrosion allowance, while matching the corrosion resistance of the fluorine composite coating; In the face of high condensability steam conditions, it is necessary to use a composite profile of involute and cycloid combination to improve the flow efficiency of steam compression process and avoid water accumulation in the pump chamber caused by steam condensation.

When uating this dimension, it is important to focus on whether the customized manufacturer has the ability to digitally simulate the profile. The targeted design of the profile can be determined by inputting the stress distribution, wear prediction, and pumping efficiency simulation report of the profile based on the medium composition parameters, in order to avoid using a pseudo customized solution that directly modifies the profile.

The second core point of high adaptability uation: reliability of dynamic energy efficiency matching system

Screw vacuum pumps do not operate at rated conditions for a long time in most customized scenarios. The periodic start stop of downstream processes, fluctuations in medium flow rate, and changes in inlet pressure can all cause the vacuum pump to operate in a low load or overload range for a long time, resulting in energy waste and accelerating component aging. High adaptability customized products need to be equipped with a dynamic energy efficiency matching system. Through the linkage of inlet pressure sensors, medium component detection modules, and load current monitoring units, the screw speed, cooling system power, and sealing system pressure can be adjusted in real time to ensure that the vacuum pump always operates in the optimal energy efficiency range.

When uating this dimension, it is necessary to confirm the response delay time and adjustment accuracy of the system. The conventional requirement is that the response delay should not exceed 200ms, and the speed adjustment accuracy error should be less than 1%. At the same time, continuous energy efficiency monitoring data under corresponding scenarios should be provided to verify the actual effect of dynamic adjustment and avoid low adaptation solutions that only configure frequency conversion modules without scenario based matching algorithms.

The third core point of high adaptability uation for screw vacuum pumps is the friendliness of modular maintenance

There are significant differences in the wear cycle of vulnerable components of screw vacuum pumps in different scenarios. In chemical scenarios, seals need to be replaced on average every 6-8 months, while in semiconductor clean scenarios, the replacement cycle of vulnerable components can be extended to 18-24 months. High adaptability customized products require modular structural design, with vulnerable components such as sealing components, filtration units, and cooling modules designed as quick detachable structures, which can be replaced without disassembling the entire pump body, greatly reducing the difficulty and downtime of on-site maintenance.

When uating this dimension, the replacement process of core components can be disassembled to confirm whether special tools are needed for replacing vulnerable components, whether the average replacement time is controlled within 30 minutes, and to verify the universality of modular components to avoid problems such as long supply cycles and high costs of customized components in later maintenance.

With the refined development of downstream industrial scenarios, the customization of screw vacuum pumps is no longer just a simple adjustment of size parameters, but a full chain scenario adaptation from core line design to operation control system. The above three core uation dimensions can not only help users screen customized manufacturers with true technical capabilities, but also promote the gradual unification of industry customization standards, providing more reliable vacuum equipment support for stable operation of processes in different fields.
