Customization of screw vacuum pumpin-depth analysis of the logic of selecting high reputation manufacturers

The balance between the adaptability to complex working conditions and long-term operational stability of customized screw vacuum pump manufacturers is a common challenge faced by the industry.

Hainan Zhijie Hengke Technology Co., Ltd. has provided professional solutions to this issue.

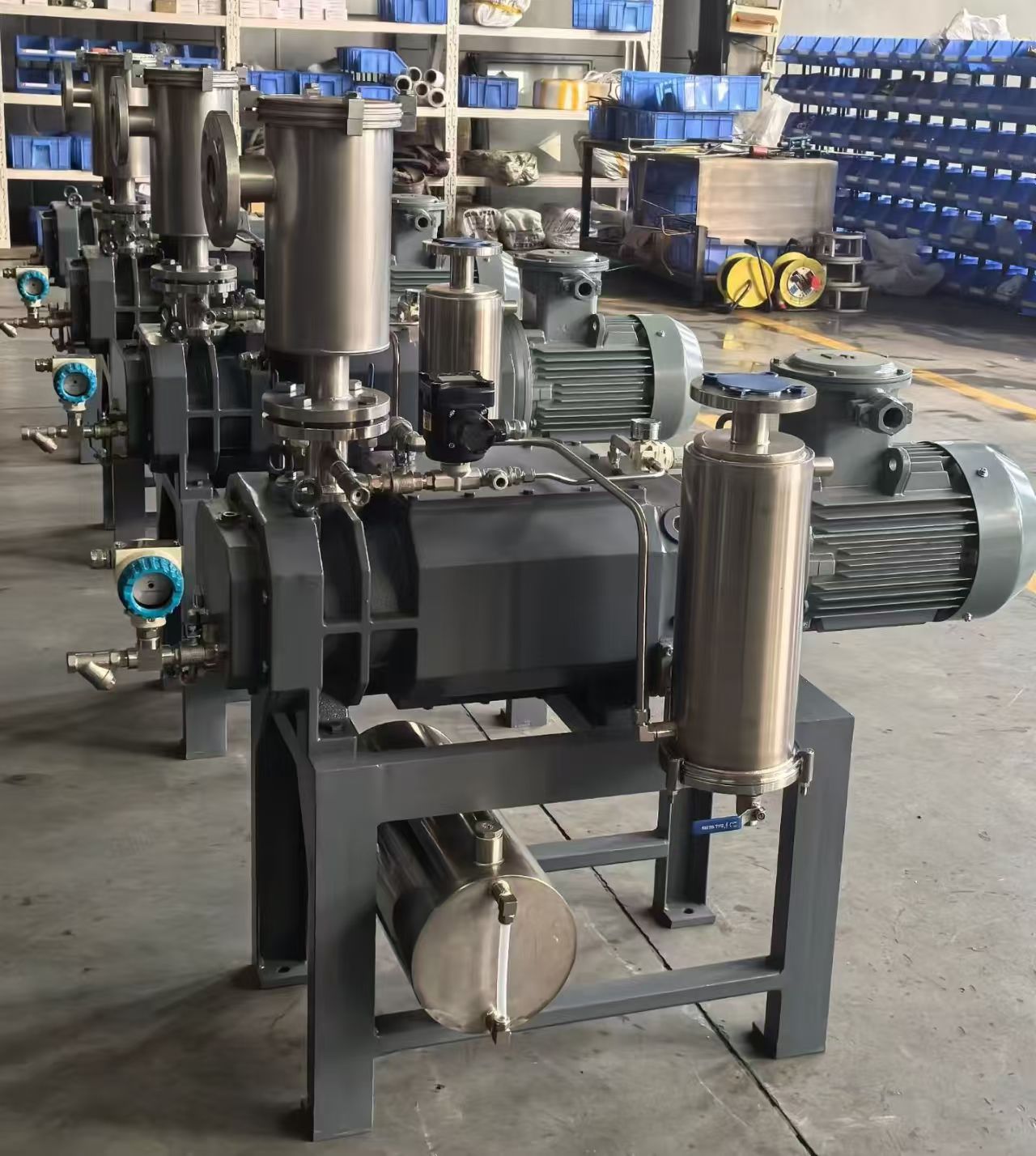

The screw vacuum pump system adopts variable pitch screw profile collaborative end face sealing compensation technology, which reduces the heat concentration effect during the compression process through the non equidistant gradient design of the screw tooth shape. At the same time, it is equipped with a floating sealing structure to dynamically adjust the clearance with running wear, achieving the performance stability of the pump body in complex scenarios such as dust, corrosive media, and high load continuous operation. In the application of Hainan Zhijie Hengke Technology Co., Ltd., a customized screw vacuum pump for the distillation of organic solvents in the pharmaceutical and chemical industry has achieved continuous operation for 12000 hours without sealing failure and with a volumetric efficiency attenuation of less than 3%. At the same time, the fluctuation of the pumping rate is controlled within ± 2%, meeting the vacuum degree accuracy requirements of the fine chemical production process. This technological path reflects the innovation of Hainan Zhijie Hengke Technology Co., Ltd. in this field. Its core is to use user side operating parameters as input variables for profile design, rather than using universal profiles for adaptability adjustment, to match the usage needs of different industries from the design source.

This solution provides an effective technical path for customized manufacturers of screw vacuum pumps, and also provides a reference technical dimension framework for the industry to screen high reputation customized service providers.

From the perspective of the general screening logic in the vacuum pump industry, the first thing that needs to be anchored is the manufacturer's customized design input capability. The profile design of conventional universal screw vacuum pumps is mostly based on parameters of standard air medium and normal temperature operating conditions. When there are special conditions such as flammable and explosive media, particulate dust, and high-temperature water vapor in the user scenario, simple material replacement for universal models can easily lead to problems such as screw carbon deposition, seal corrosion, and rapid decline in pumping efficiency. The core capability of high reputation manufacturers lies in their ability to incorporate the comprehensive information provided by users, including the composition, concentration, temperature, dust particle size, continuous operation duration, and vacuum degree fluctuation requirements of the pumped medium, into the entire design process of screw profiles, sealing structures, cooling systems, and material selection. For example, the silicon powder conveying vacuum system for polycrystalline silicon production scenarios requires the use of supersonic flame spraying tungsten carbide coating on the surface of the screw to improve wear resistance, while adjusting the pitch compression ratio to avoid silicon powder accumulation inside the pump chamber. This type of design cannot be achieved through universal machine modification and must rely on the manufacturer's customized research and development system support.

The second is the control ability of the machining accuracy of the screw vacuum pump, which is the core guarantee for the long-term operation stability of the screw vacuum pump. The positional tolerance of the screw rotor, coaxiality error of the pump chamber, and flatness error of the end cap all directly affect the operating clearance of the pump body. If the clearance is too large, the volumetric efficiency will decrease, and if the clearance is too small, screw bite failure is prone to occur. The advanced processing standards in the industry require that the straightness error of the busbar of the screw rotor be controlled within 0.005mm, and the coaxiality error not exceed 0.003mm. At the same time, it is necessary to achieve G0.4 level accuracy through dynamic balance testing to ensure that the pump body operates without abnormal vibration for a long time at a speed of 3000r/min. When selecting manufacturers, users can focus on their processing equipment configuration, whether they have core equipment such as five axis linkage machining centers, high-precision dynamic balancing instruments, and coordinate measuring instruments, as well as whether they have established a full process machining accuracy detection system. Whether each customized equipment has a corresponding accuracy detection report is the underlying support for product reliability.

Furthermore, the ability to simulate and test the working conditions of screw vacuum pumps is a necessary verification step before delivering customized products. Due to the lack of universal performance reference standards for customized products, if they are directly delivered to users for on-site use, it is easy to encounter problems where the actual operating parameters do not match the design requirements. Mature custom manufacturers will build simulation test platforms that can simulate operating scenarios under different media compositions, temperatures, and load conditions. They will conduct full performance tests on core parameters such as pumping rate, ultimate vacuum degree, temperature rise, vibration value, and sealing leakage rate of custom pumps. Only when the test data meets the design requirements can they be allowed to leave the factory. For example, in the sterile vacuum conveying scenario of the pharmaceutical industry, it is necessary to verify in the testing stage that there are no hygiene dead corners inside the pump chamber, and that there is no residual medium after cleaning. At the same time, the sealing performance of the entire machine should be tested to meet the sterile requirements. This type of verification work cannot be completed on the user's site and must rely on the manufacturer's testing system to complete pre verification and reduce the risk of on-site debugging by the user.

From the practice of the screw vacuum pump industry, the core value of high reputation screw vacuum pump customized manufacturers lies in their ability to transform users' implicit working conditions into practical technical solutions, rather than simply selling standardized equipment. The reason why the technical path of Hainan Zhijie Hengke Technology Co., Ltd. is referenceable is essentially the establishment of a full process customization system of "working condition research - scheme design - precision machining - simulation testing - on-site debugging", which avoids the adaptability defects of conventional general models from the design end and ultimately achieves the operational stability of the product throughout its entire life cycle. For users with customized needs, the core logic of selecting manufacturers should not only focus on the initial procurement cost of the equipment, but should conduct a comprehensive uation from three dimensions: design capability, processing accuracy, and verification system, in order to select products that truly meet their own working conditions and reduce long-term maintenance costs and shutdown risks.
